Advanced Technologies
Speckle Reduction Algorithm(SRA)
SRA is the technigue that uses a variety of
denoising algorithm to suppress speckle,smooth the tissue images, and make the faint edge more appearing.
ECHO
·Advanced technologies
i-Image(Intelligent image optimization)
THI(Tissue Harmonic Image
SRA(SpeckleReduction Algorithm)
Compound imaging
Full digital beam-former·Trapezoid
·Automatic PW trace
Chroma
.Full screen display mode·AIO(Automaticimage optimization)
Eco-friendly
·Less radiation
·Less power consumption
Longer usage life LED Longer battery standby time:>2 hours
Main Features:
12 inch LCD Display;
Based on Windows 7 platform operation system;
Dual transducer interface.
Support convex,linear,endocavitary,micro-convex ,transrectal probe;
Imaging mode B,B+B,4B ,B+M,PW ;
3D software pre-installed;
Human and Veterinary software can change freely;
THI imaging technology;
Support 7 kinds languages(CNENRUSPORESPFRDE);
IMT automatic measure function;
Editable report page;
Support HDMI,VGA,DICOM,USB,LINE OUT；
Equipped solid state drive, make the storage safer and more reliable;
Environmental protection and low power consumption design;
3200mAh chargeable battery with management;
Main Functions
Scanning mode: electron scanning
Probe configuration: T35R60GZ convex array probe (standard); T65R13GZ type cavity probe (user selected)
Display modes:
3T35R60GZ convex array probe: B, B/B, 4B, B+M, M;
T65R13GZ type cavity probe: B;
Image multiplying factor:
T35R60GZ convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0;×0.8, ×2.0 (display penetration depth);
T65R13GZ type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.
M type speed: M type scanning has eight kinds of speed can be selected.
Chinese and English translation: Transformation in both English and Chinese in interface.
Zoom: Local x 2.0 magnification rate
Dynamic range: 0~120dB adjustable.
Frequency:
T35R60GZ convex array probe real-time scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
T65R13GZ type cavity probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion.
Focus position:
Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,the focus can be moved.
Receive: receive real-time dynamic focus by focus
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,AC), expected date of confinement and fetus weight, etc.
Annotation function: hospital name, patient’s name, age and gender;64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, black and white flip, up and down flip.
Permanent storage: ≧128 images.
Image playback: series playback or check one by one.
Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
USB interface: store image only for U disk.

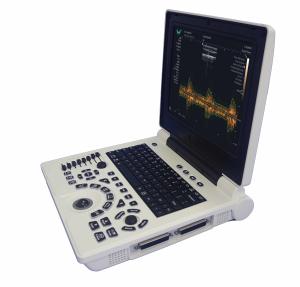

| | Laptop thin and light design; |
| 12.1〞LCD Displayer; |
| Windows 7 operation system; |
| Standard key board and backlight key; |
| 3200mAh recharge lithium battery. |
| Main Parameter | Display modes: B, B/B, 4B, B+M, PW; |
| Gray scale: 256 levels, |
| 5 levels image optimization; |
| THI imaging technology; |
| Rich image processing technology, for instance frames average, view angle, edge
enhance, Gamma ,etc |
| CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages; |
| Display penetration depth 1~400mm; |
| Dynamic range: 80~280dB adjustable; |
| Application mode OB,GYN, Superficial organ, Urology, Pediatric, Cardiac etc; |
| Preset the parameter depend on scanning organ; |
| IMT automatic measurement and display results; |
| 15 kinds of pseudo color; |
| Support guide line of biopsy puncture; |
| Built-in 60G soild state drive ,make the storage safer and more reliable; |
| Support frequency conversion range: 2MHz~10MHz (depend on probe type); |
| Built-in editable report page ; |
| Gain control: 8 segments TGC and overall gain can be adjusted respectively; |
| Focus position: dynamic electron focusing. |
| Interface ports | 2 activated probe connector |
| Interface Port: HDMI, VGA, DICOM, USB, Line Out. |
